Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE INTERCOOLER ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  2. REMOVE NO. 2 AIR TUBE
    1. GTY1106604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the 4 bolts and No. 2 air tube from the throttle body with motor assembly and intake manifold.
      2. Remove the throttle body gasket from the No. 2 air tube.
  3. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    NOTE:

    If the throttle body with motor assembly has been struck or dropped, replace it.

    1. GTY1076199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

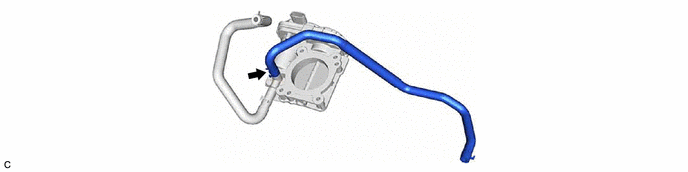

  4. REMOVE NO. 4 WATER BY-PASS HOSE
    1. GTY1076215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

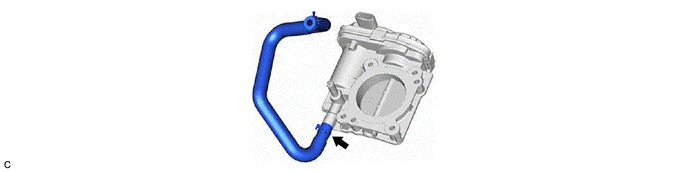

  5. REMOVE NO. 5 WATER BY-PASS HOSE
    1. GTY1076179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
