Removal [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23 [10/2022 - 11/2023]
, or refer to PROCEDURE - Step 23 [11/2023 - ]

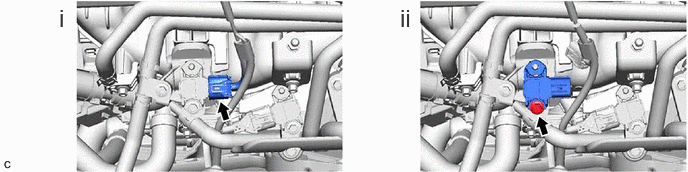

- REMOVE NO. 1 TURBO PRESSURE SENSOR
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the No. 1 turbo pressure sensor connector.
- Using an 8 mm socket wrench, remove the bolt and No. 1 turbo pressure sensor from the intake manifold.
NOTE:
If the No. 1 turbo pressure sensor has been struck or dropped, replace it.

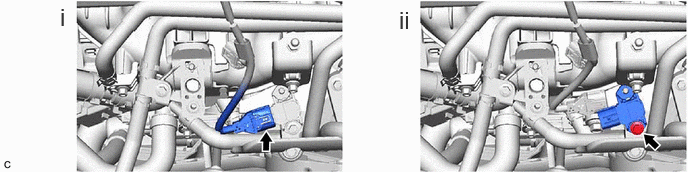

- REMOVE NO. 2 TURBO PRESSURE SENSOR
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the No. 2 turbo pressure sensor connector.
- Using an 8 mm socket wrench, remove the bolt and No. 2 turbo pressure sensor from the intercooler assembly.
NOTE:
If the No. 2 turbo pressure sensor has been struck or dropped, replace it.
