Installation [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

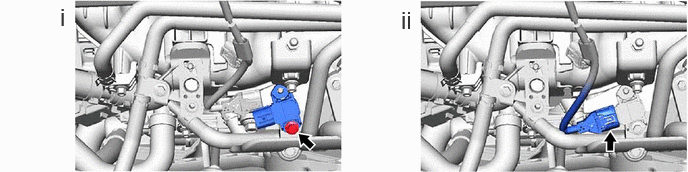

- INSTALL NO. 2 TURBO PRESSURE SENSOR
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using an 8 mm socket wrench, install the No. 2 turbo pressure sensor to the intercooler assembly with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
NOTE:
If the No. 2 turbo pressure sensor has been struck or dropped, replace it.
- Connect the No. 2 turbo pressure sensor connector.

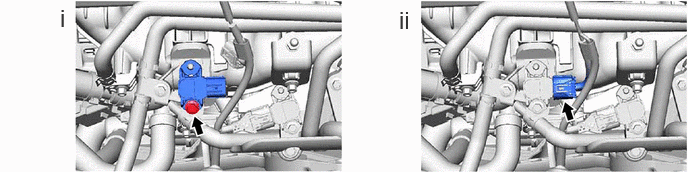

- INSTALL NO. 1 TURBO PRESSURE SENSOR
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using an 8 mm socket wrench, install the No. 1 turbo pressure sensor to the intake manifold with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
NOTE:
If the No. 1 turbo pressure sensor has been struck or dropped, replace it.
- Connect the No. 1 turbo pressure sensor connector.
- INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 56 [10/2022 - 11/2023]
, or refer to PROCEDURE - Step 56 [11/2023 - ]
