Removal [10/2022 - 11/2023]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [10/2022 - 11/2023]

  2. DISCONNECT WIRE HARNESS

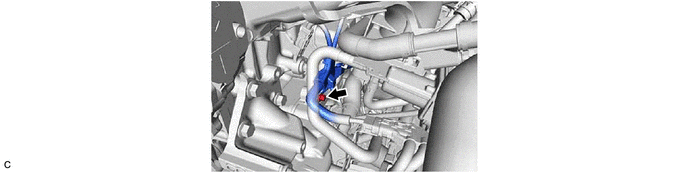

    1. GTY1076401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE KNOCK CONTROL SENSOR
    NOTE:

    If the knock control sensor has been struck or dropped, replace it.

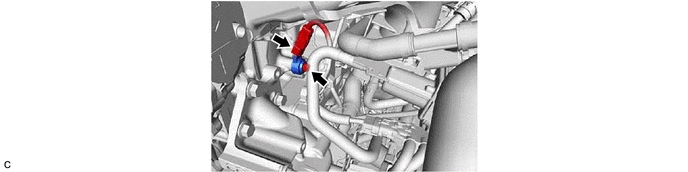

    1. GTY1076404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
