Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE OIL TEMPERATURE SENSOR

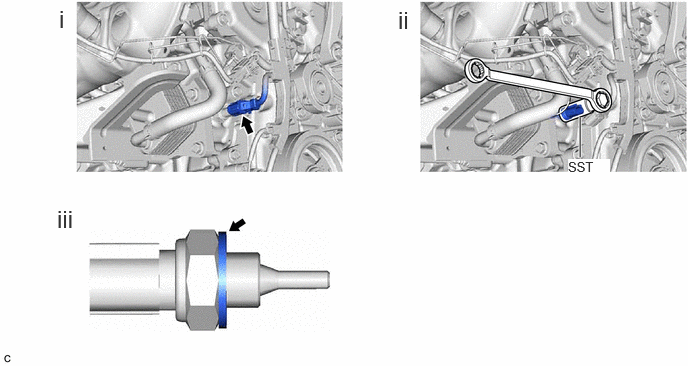

    1. GTY1104540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the engine oil temperature sensor connector.
      2. Using SST, remove the engine oil temperature sensor from the cylinder block sub-assembly.
        • SST: 09817-33191
        NOTE:

        If the engine oil temperature sensor has been struck or dropped, replace it.

      3. Remove the gasket from the engine oil temperature sensor.
