Inspection [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT ENGINE OIL TEMPERATURE SENSOR WARNING:
- Do not put your hands into the water that has been heated for the inspection.
- Touching the heated water could result in burns.

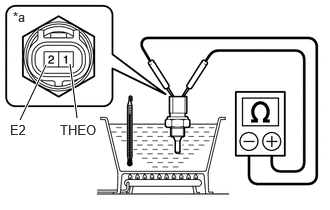

- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Engine Oil Temperature Sensor)Standard Resistance
Tester Connection Condition Specified Condition 1 (THEO) - 2 (E2) 30°C (86°F) 2.647 to 3.021 kΩ NOTE:If checking the engine oil temperature sensor in water, be careful not to allow water to contact the terminals. After checking, wipe the water off the engine oil temperature sensor.
If the result is not as specified, replace the engine oil temperature sensor.
