Removal [10/2022 - 11/2023]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

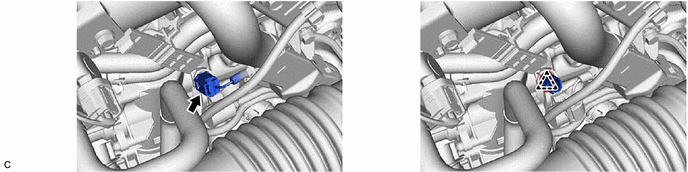

  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Outlet Side)
    NOTE:

    If the engine coolant temperature sensor has been struck or dropped, replace it.

    1. GTY1076268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE GENERATOR ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

    Refer to REMOVAL [10/2022 - 11/2023]

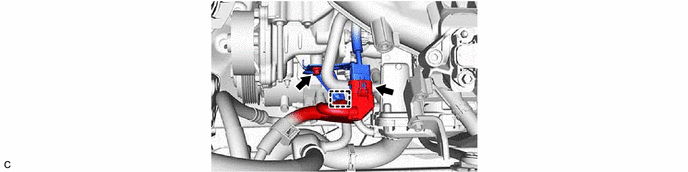

  4. DISCONNECT WIRE HARNESS

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

    1. GTY1077400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

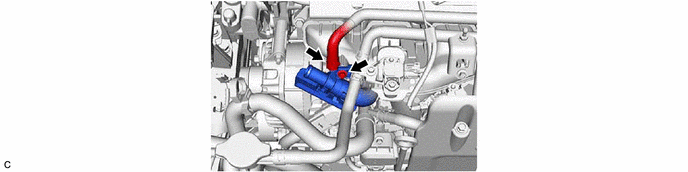

  5. DISCONNECT NO. 2 INTERCOOLER COOLING WATER PIPE

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

    1. GTY1106510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

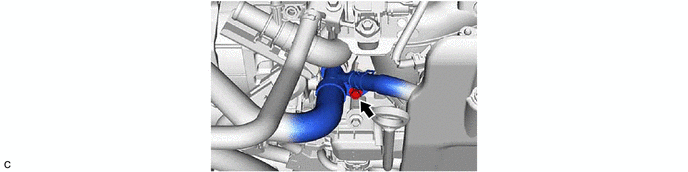

  6. DISCONNECT NO. 1 INTERCOOLER COOLING WATER PIPE

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Water Inlet Housing Side) is necessary.

    1. GTY1106522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

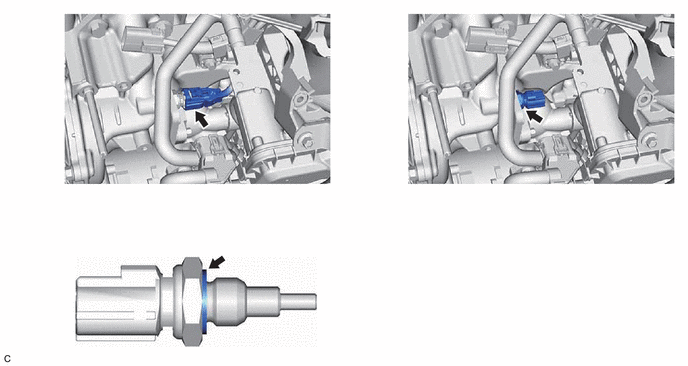

  7. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Water Inlet Housing Side)
    NOTE:

    If the engine coolant temperature sensor has been struck or dropped, replace it.

    1. GTY1076275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the engine coolant temperature sensor (for Cylinder Head Side) is necessary.

    Refer to REMOVAL [10/2022 - ]

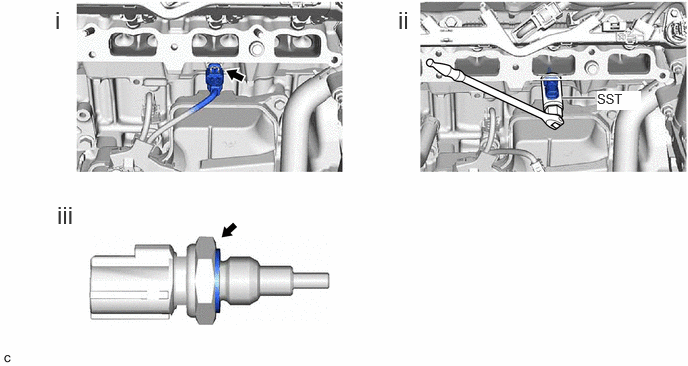

  9. REMOVE ENGINE COOLANT TEMPERATURE SENSOR (for Cylinder Head Side)
    1. GTY1104656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the engine coolant temperature sensor connector.
      2. Using SST, remove the engine coolant temperature sensor from the cylinder head sub-assembly.
        • SST: 09817-33191
        NOTE:

        If the engine coolant temperature sensor has been struck or dropped, replace it.

      3. Remove the gasket from the engine coolant temperature sensor.
