Components [10/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

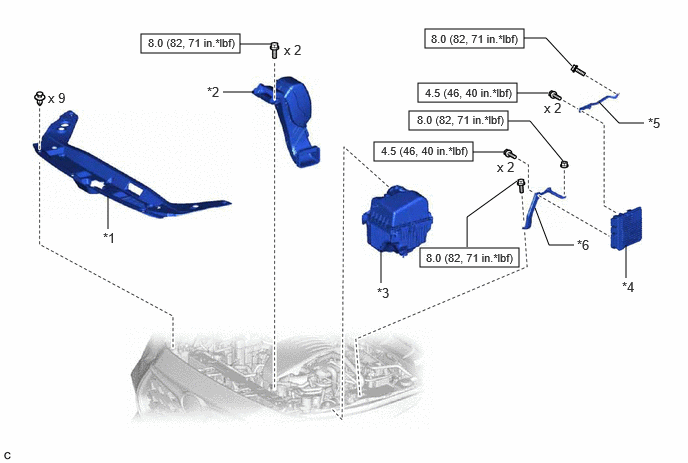

Fig 1: ECM Replacement Components With Torque Specifications
GTY1106754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COOL AIR INTAKE DUCT SEAL *2 INLET AIR CLEANER ASSEMBLY
*3 AIR CLEANER ASSEMBLY *4 ECM
*5 NO. 1 ECM BRACKET *6 NO. 2 ECM BRACKET
N.m (kgf/cm, ft.lbf): Specified torque - -
