Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 23 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 23 [11/2023 - ]

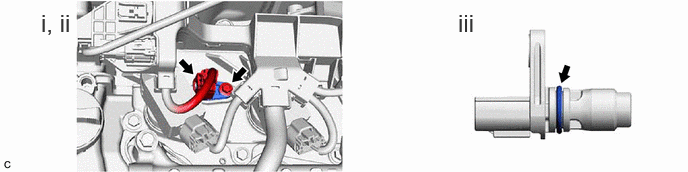

REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the camshaft position sensor connector.
Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
NOTE:
If the camshaft position sensor has been struck or dropped, replace it.
Perform this procedure only when reusing the camshaft position sensor.
1. Remove the O-ring from the camshaft position sensor.
NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
- If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.

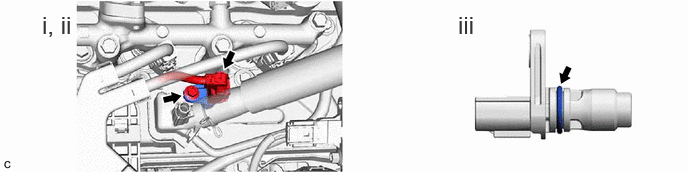

REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)

Disconnect the camshaft position sensor connector.
Using an 8 mm socket wrench, remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
NOTE:
If the camshaft position sensor has been struck or dropped, replace it.
Perform this procedure only when reusing the camshaft position sensor.
1. Remove the O-ring from the camshaft position sensor.
NOTE:
- Make sure to only remove the O-ring with bare hands.
- When removing the O-ring, be careful not to damage the O-ring groove of the camshaft position sensor.
- If the O-ring groove of the camshaft position sensor is damaged, replace the camshaft position sensor with a new one.
