Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL CAMSHAFT POSITION SENSOR (for Exhaust Side)

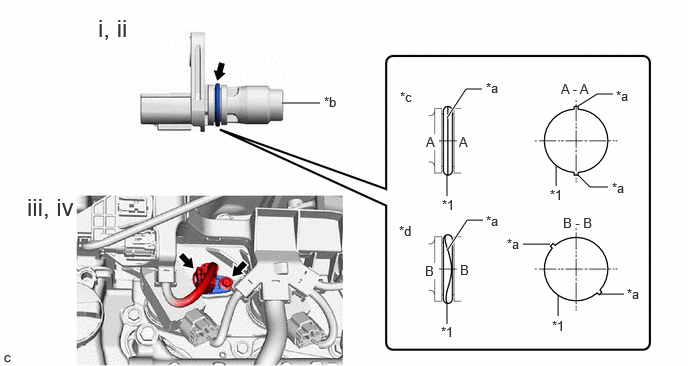

    1. GTY1106688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring - -
      *a Seam *b Camshaft Position Sensor Tip
      *c OK *d NG
      1. Perform this procedure only when reusing the camshaft position sensor.
        1. Clean the O-ring groove of the camshaft position sensor.
          NOTE:

          Make sure the O-ring groove is free of foreign matter.

        2. Install a new O-ring to the camshaft position sensor.
          NOTE:

          Set the O-ring on the tip of the camshaft position sensor and roll it into the O-ring groove with bare hands to install it.

        3. Check if the O-ring is twisted.

          HINT:

          Check the entire circumference of the seam of the O-ring for twisting.

      2. Apply a light coat of engine oil to the O-ring of the camshaft position sensor.
      3. Using an 8 mm socket wrench, install the camshaft position sensor to the cylinder head cover sub-assembly with a new bolt.

        Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

        NOTE:
        • If the camshaft position sensor has been struck or dropped, replace it.
        • Make sure that the O-ring is not cracked or moved out of place when installing the camshaft position sensor.
      4. Connect the camshaft position sensor connector.
  2. INSTALL CAMSHAFT POSITION SENSOR (for Intake Side)

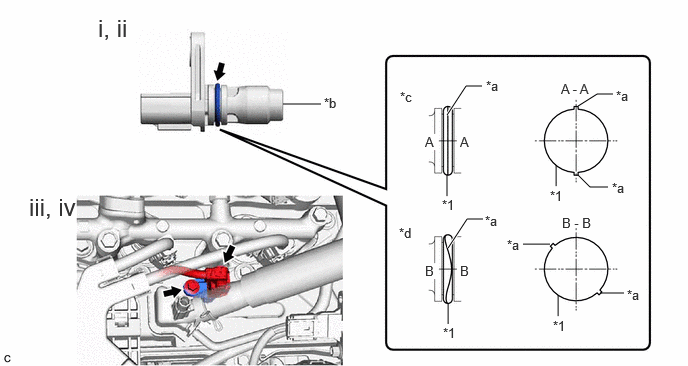

    1. GTY1109379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring - -
      *a Seam *b Camshaft Position Sensor Tip
      *c OK *d NG
      1. Perform this procedure only when reusing the camshaft position sensor.
        1. Clean the O-ring groove of the camshaft position sensor.
          NOTE:

          Make sure the O-ring groove is free of foreign matter.

        2. Install a new O-ring to the camshaft position sensor.
          NOTE:

          Set the O-ring on the tip of the camshaft position sensor and roll it into the O-ring groove with bare hands to install it.

        3. Check if the O-ring is twisted.

          HINT:

          Check the entire circumference of the seam of the O-ring for twisting.

      2. Apply a light coat of engine oil to the O-ring of the camshaft position sensor.
      3. Using an 8 mm socket wrench, install the camshaft position sensor to the cylinder head cover sub-assembly with a new bolt.

        Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

        NOTE:
        • If the camshaft position sensor has been struck or dropped, replace it.
        • Make sure that the O-ring is not cracked or moved out of place when installing the camshaft position sensor.
      4. Connect the camshaft position sensor connector.
  3. INSPECT FOR ENGINE OIL LEAK

    Refer to PROCEDURE - Step 6

  4. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 56 [10/2022 - 11/2023] , or refer to PROCEDURE - Step 56 [11/2023 - ]
