Installation [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL CAM TIMING OIL CONTROL SOLENOID O-RING
HINT:
Perform this procedure only when replacement of the cam timing oil control solenoid O-ring is necessary.
- Clean the O-ring groove of the cam timing oil control solenoid assembly.NOTE:
Make sure the O-ring groove is free of foreign matter.
- Install a new cam timing oil control solenoid O-ring to the cam timing oil control solenoid assembly.NOTE:
Do not damage the cam timing oil control solenoid O-ring when installing it.
- Clean the O-ring groove of the cam timing oil control solenoid assembly.

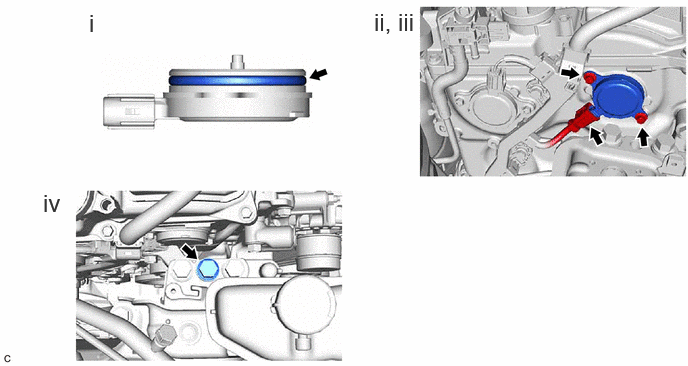

- INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side)
- Apply a light coat of engine oil to the cam timing oil control solenoid O-ring.NOTE:
If reusing the cam timing oil control solenoid assembly, be sure to inspect the cam timing oil control solenoid O-ring.
- Using an 8 mm socket wrench, install the cam timing oil control solenoid assembly to the No. 2 timing gear cover assembly with 2 new bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
NOTE:- If the cam timing oil control solenoid assembly has been struck or dropped, replace it.
- Make sure that the cam timing oil control solenoid O-ring is not cracked or moved out of place when installing the cam timing oil control solenoid assembly.
- Connect the cam timing oil control solenoid assembly connector.
- Install the bolt.
Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)
- Apply a light coat of engine oil to the cam timing oil control solenoid O-ring.

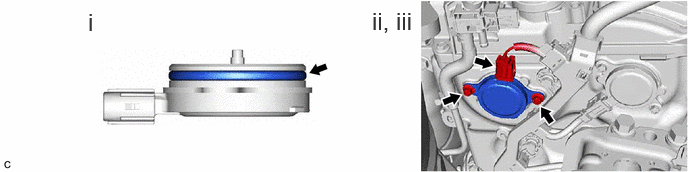

- INSTALL CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side)
- Apply a light coat of engine oil to the cam timing oil control solenoid O-ring.NOTE:
If reusing the cam timing oil control solenoid assembly, be sure to inspect the cam timing oil control solenoid O-ring.
- Using an 8 mm socket wrench, install the cam timing oil control solenoid assembly to the No. 2 timing gear cover assembly with 2 new bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
NOTE:- If the cam timing oil control solenoid assembly has been struck or dropped, replace it.
- Make sure that the cam timing oil control solenoid O-ring is not cracked or moved out of place when installing the cam timing oil control solenoid assembly.
- Connect the cam timing oil control solenoid assembly connector.
- Apply a light coat of engine oil to the cam timing oil control solenoid O-ring.
- CONNECT NO. 2 EARTH WIRE
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- INSPECT FOR ENGINE OIL LEAK
Refer to PROCEDURE - Step 6
