Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

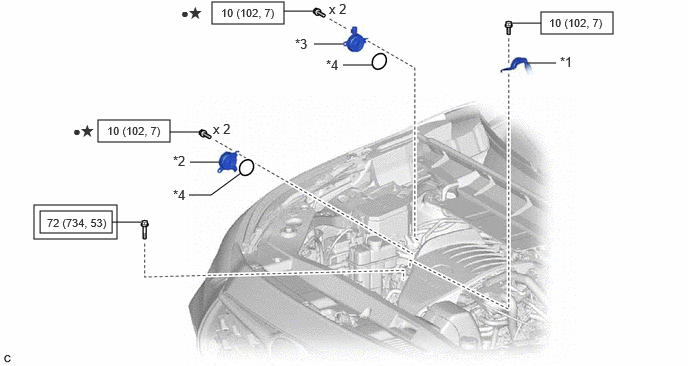

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 2 EARTH WIRE | *2 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side) |
| *3 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side) | *4 | CAM TIMING OIL CONTROL SOLENOID O-RING |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | * | Precoated part |
