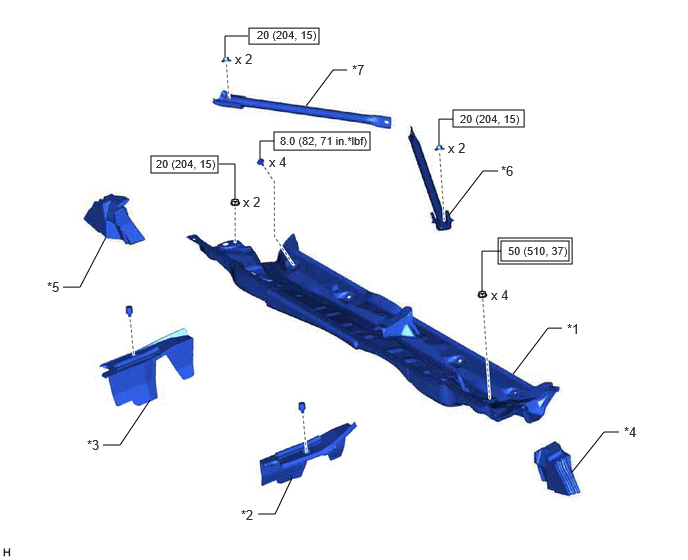

Fig 1: Air Fuel Ratio Sensor (For Sensor 1) Replacement Components With Torque Specifications [10/2022 - ] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL VENTILATOR PANEL SUB-ASSEMBLY | *2 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR LH |
| *3 | FENDER SPLASH SHIELD SUB-ASSEMBLY REAR RH | *4 | FRONT FENDER SPLASH SHIELD SEAL FRONT LH |
| *5 | FRONT FENDER SPLASH SHIELD SEAL FRONT RH | *6 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY LH |
| *7 | FRONT UPPER SUSPENSION TO COWL BRACE SUB-ASSEMBLY RH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

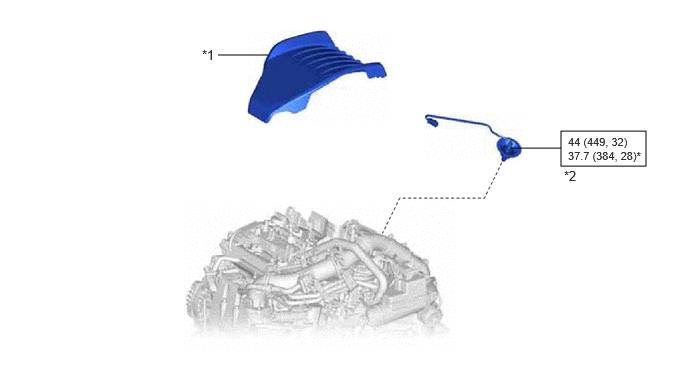

Fig 2: Air Fuel Ratio Sensor (For Sensor 1) Replacement Components With Torque Specifications [10/2022 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *2 | AIR FUEL RATIO SENSOR |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |
