Removal [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FRAME ASSEMBLY

    Refer to REMOVAL [11/2023 - ]

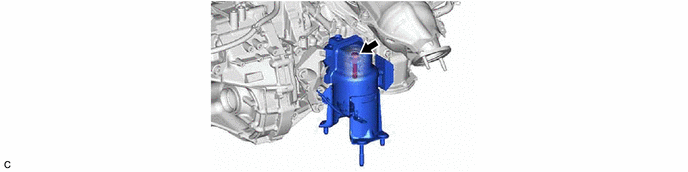

  2. REMOVE REAR ENGINE MOUNTING INSULATOR
    1. GTY1108150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE WIRE HARNESS CLAMP BRACKET
    1. GTY1109387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

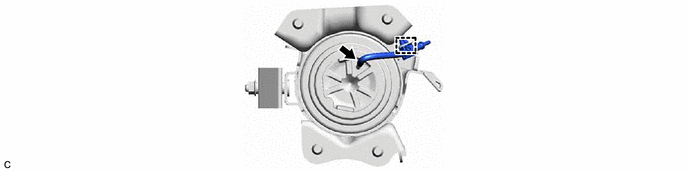

  4. DISCONNECT VACUUM HOSE
    1. GTY1108151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
