Installation [10/2022 - ]: Procedure
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- CONNECT VACUUM HOSE
- INSTALL WIRE HARNESS CLAMP BRACKET
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- INSTALL REAR ENGINE MOUNTING INSULATOR

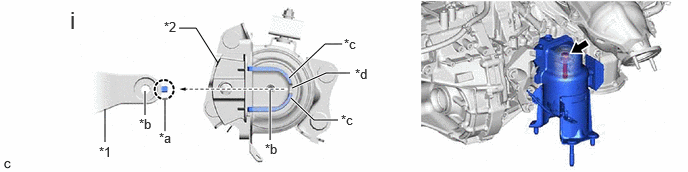

*1 Rear Engine Mounting Bracket *2 Rear Engine Mounting Insulator *a Protrusion *b Hole *c Wall *d Gap - Align and insert the protrusion of the rear engine mounting bracket into the gap between the 2 inner walls of the rear engine mounting insulator to align the hole of the rear engine mounting bracket with the hole of the rear engine mounting insulator, and install the rear engine mounting insulator with the bolt.
Torque: 72 N.m (734 kgf/cm, 53 ft.lbf)
- Align and insert the protrusion of the rear engine mounting bracket into the gap between the 2 inner walls of the rear engine mounting insulator to align the hole of the rear engine mounting bracket with the hole of the rear engine mounting insulator, and install the rear engine mounting insulator with the bolt.
- INSTALL FRONT FRAME ASSEMBLY
Refer to INSTALLATION [10/2022 - 11/2023] , or refer to INSTALLATION [11/2023 - ]
