Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

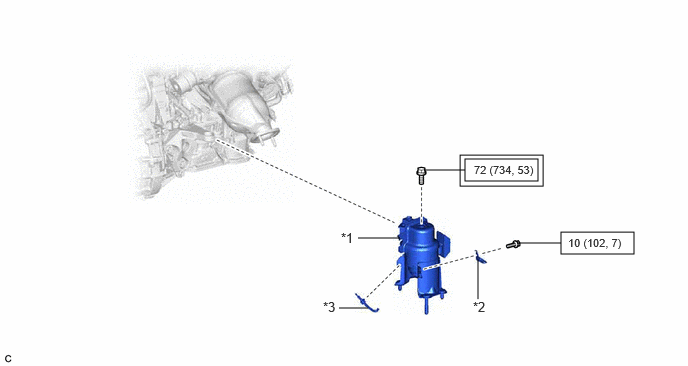

Fig 1: Active Control Engine Mount (For Rear Side) Replacement Components With Torque Specifications [10/2022 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE MOUNTING INSULATOR | *2 | WIRE HARNESS CLAMP BRACKET |
| *3 | VACUUM HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
