Removal [11/2023 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7

  4. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8

  5. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9

  6. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  7. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 4

  8. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  9. REMOVE COOL AIR INTAKE DUCT SEAL
  10. REMOVE INLET AIR CLEANER ASSEMBLY

    See step  4

  11. REMOVE AIR CLEANER ASSEMBLY

    See step  5

  12. REMOVE INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY

    Refer to REMOVAL [10/2022 - ]

  13. DISCONNECT NO. 1 RADIATOR HOSE

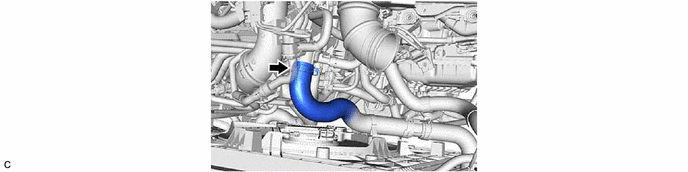

    1. GTY1106280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. DISCONNECT WATER BY-PASS HOSE ASSEMBLY

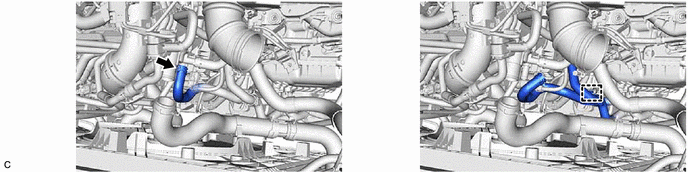

    1. GTY1106281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. DISCONNECT WIRE HARNESS
    1. GTY1105329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Stop and Start System *B w/o Stop and Start System
  16. DISCONNECT VACUUM HOSE

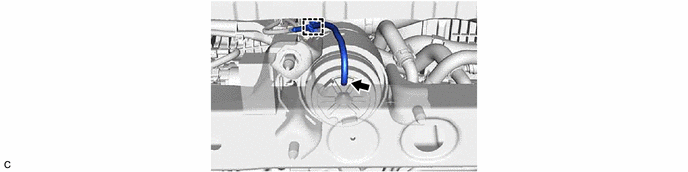

    1. GTY1109386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT ENGINE MOUNTING BRACKET
    1. GTY1107904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Wooden Block Placement Location - -
      1. Support the engine assembly with transaxle using a jack and wooden block.
      2. Remove the 4 bolts and front engine mounting bracket.
  18. REMOVE FRONT ENGINE MOUNTING INSULATOR
    1. GTY1108147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
