Components [10/2022 - ]
WARNING: This page is about a different car, the 2025 Toyota Highlander, 2024 Toyota Highlander, and 2023 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Active Control Engine Mount (For Front Side) Replacement Components With Torque Specifications [10/2022 - ] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT WHEEL OPENING EXTENSION PAD RH | *2 | FRONT WHEEL OPENING EXTENSION PAD LH |
| *3 | NO. 1 ENGINE UNDER COVER | *4 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Active Control Engine Mount (For Front Side) Replacement Components With Torque Specifications [10/2022 - ] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | INLET AIR CLEANER ASSEMBLY |
| *3 | AIR CLEANER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

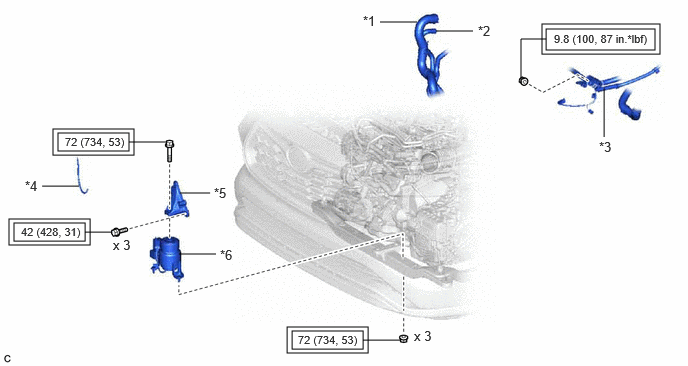

Fig 3: Active Control Engine Mount (For Front Side) Replacement Components With Torque Specifications [10/2022 - ] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 RADIATOR HOSE | *2 | WATER BY-PASS HOSE ASSEMBLY |
| *3 | WIRE HARNESS | *4 | VACUUM HOSE |
| *5 | FRONT ENGINE MOUNTING BRACKET | *6 | FRONT ENGINE MOUNTING INSULATOR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
