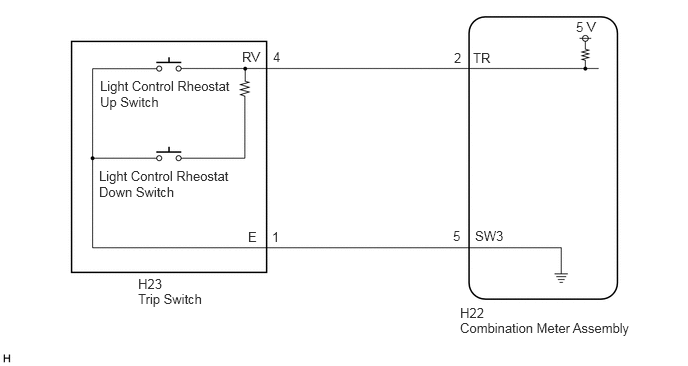

Operating Light Control Rheostat does not Change Light Brightness [12/2019 - ]: Wiring Diagram

GTY900570

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
