DCM Communication Stop Mode [09/2022 - 11/2022]: Procedure
WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK FOR OPEN IN CAN BUS LINES (DCM (TELEMATICS TRANSCEIVER) BRANCH LINE)
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the I143 DCM (telematics transceiver) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition I143-25 (CANP) - I143-26 (CANN) Cable disconnected from negative (-) battery terminal 54 to 69 Ω *a Front view of wire harness connector
(to DCM (Telematics Transceiver))Result
Result OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (DCM (TELEMATICS TRANSCEIVER))
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.

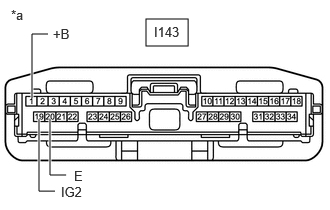

*a Front view of wire harness connector
(to DCM (Telematics Transceiver))Standard Resistance
Tester Connection Condition Specified Condition I143-20 (E) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω - Reconnect the cable to the negative (-) battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition I143-1 (+B) - Body ground Always 11 to 14 V I143-19 (IG2) - Body ground Ignition switch ON 11 to 14 V Result
Result OK NG
Result:
OK
REPLACE DCM (TELEMATICS TRANSCEIVER)
Refer to REMOVAL [09/2022 - 11/2022]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
