Removal [06/2018 - 01/2019]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [06/2018 - 01/2019]

  2. REMOVE STEERING PAD SWITCH ASSEMBLY
    1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.
    2. Remove the 2 screws.

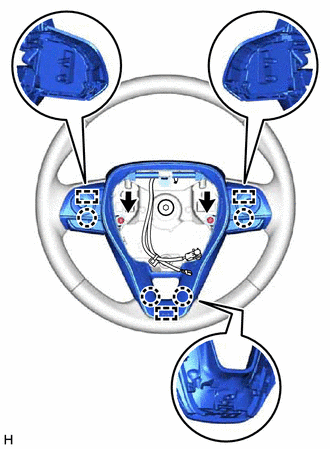

      GTY910723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 4 claws and 3 pins to remove the steering pad switch assembly.
