Removal [09/2022 - ]: Procedure

  1. REMOVE FRONT WHEEL

    Refer to REMOVAL [09/2022 - ]

  2. REMOVE FRONT DISC BRAKE PAD

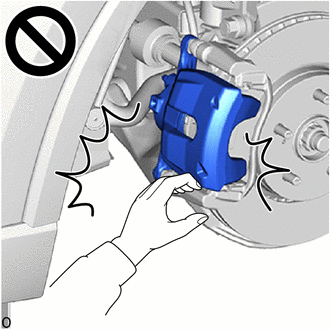

    WARNING:
    • Be careful not to get pinched by the front disc brake cylinder assembly or other parts when removing the front disc brake pads.
    • After lifting up the front disc brake cylinder assembly, secure it in place before performing any work on it.
      GTY752900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The front disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

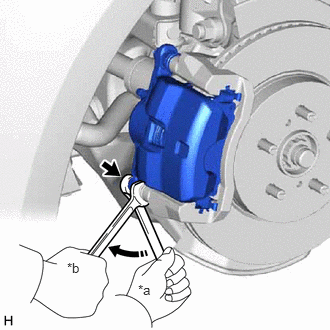

    1. Hold the front disc brake cylinder slide pin (lower side) and remove the bolt.
      GTY938022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
      NOTE:

      Do not kink or damage the brake line.

    2. Pull the front disc brake cylinder assembly upward.

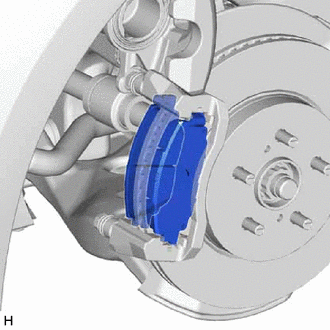

    3. Remove the 2 front disc brake pads from the front disc brake cylinder mounting.
      GTY941066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

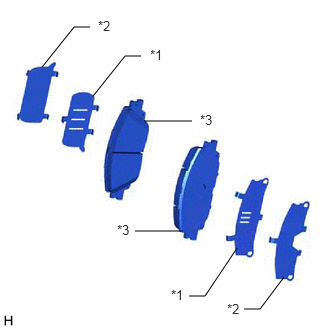

    1. Remove the front No. 1 disc brake anti-squeal shim and front No. 2 disc brake anti-squeal shim from each front disc brake pad.
      GTY869173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front No. 1 Disc Brake Anti-squeal Shim
      *2 Front No. 2 Disc Brake Anti-squeal Shim
      *3 Front Disc Brake Pad

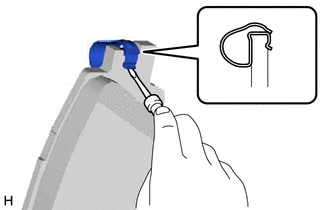

    2. Using a screwdriver, remove the front disc brake pad wear indicator plate from each front disc brake pad.
      GTY905720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
