Removal [06/2018 - 09/2024]: Procedure

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [06/2018 - 01/2019] , or refer to PROCEDURE - Step 17 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 17 [03/2019 - 06/2021] , or refer to PROCEDURE - Step 17 [06/2021 - 09/2022] , or refer to PROCEDURE - Step 17 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 17 [11/2022 - 09/2024]

  2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

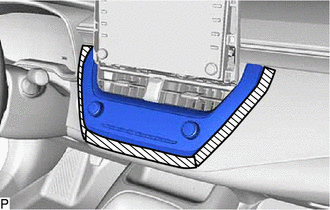

    1. Apply protective tape to the area shown in the illustration.
      GTY856002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

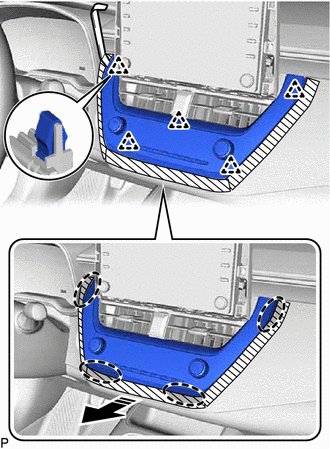

    2. Using a moulding remover, disengage the 5 clips as shown in the illustration.
      GTY851552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Moulding Remover Here
      Remove in this Direction
    3. Disconnect the connector to remove the air conditioning control assembly.
