Removal [01/2019 - 03/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TIMING CHAIN COVER ASSEMBLY

    Refer to REMOVAL [01/2019 - 03/2019]

  2. REMOVE OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 52

  3. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 53

  4. REMOVE OIL PUMP ASSEMBLY

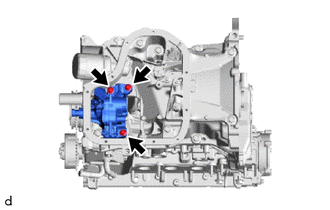

    1. Remove the 3 bolts and oil pump assembly from the stiffening crankcase assembly.
      GTY802713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
