Components [06/2018 - ]

WARNING: This page is about a different variant/trim than selected.

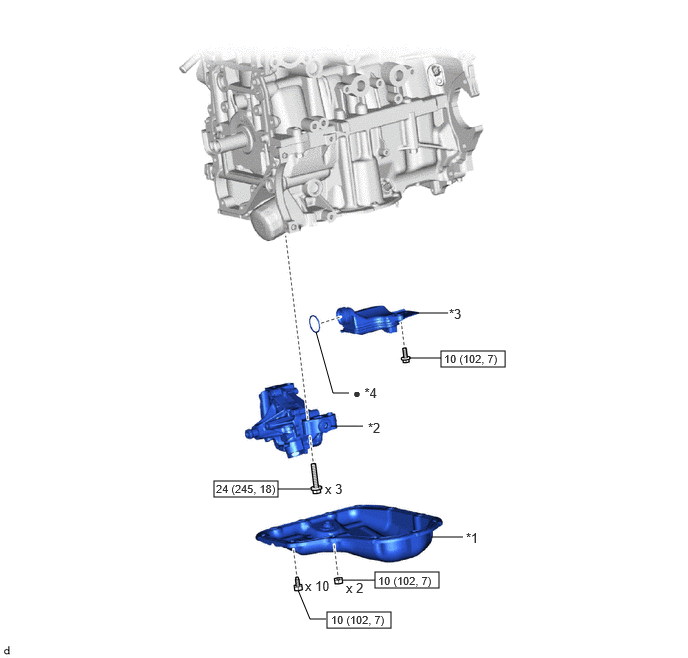

Fig 1: Oil Pump Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*1	OIL PAN SUB-ASSEMBLY	*2	OIL PUMP ASSEMBLY
*3	OIL STRAINER SUB-ASSEMBLY	*4	OIL STRAINER GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
