Removal [06/2018 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 1 [06/2018 - 01/2019] , or refer to PROCEDURE - Step 1 [01/2019 - ]

  2. REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY
    1. Disconnect the oil pressure control valve assembly connector.

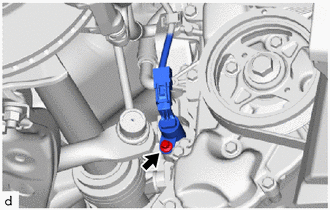

      GTY931534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using an 8 mm socket wrench, remove the bolt and oil pressure control valve assembly from the No. 2 timing chain cover assembly.
