Components [06/2018 - 01/2019]
WARNING: This page is about a different variant/trim than selected.

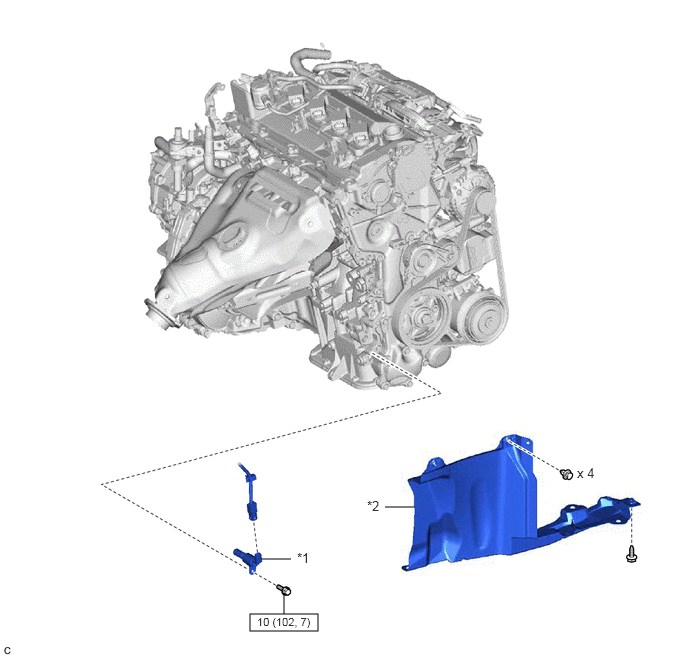

Fig 1: Oil Pressure Switching Valve Replacement Components With Torque Specifications [06/2018 - 01/2019]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OIL PRESSURE CONTROL VALVE ASSEMBLY | *2 | REAR ENGINE UNDER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
