Components [01/2019 - ]

WARNING: This page is about a different variant/trim than selected.

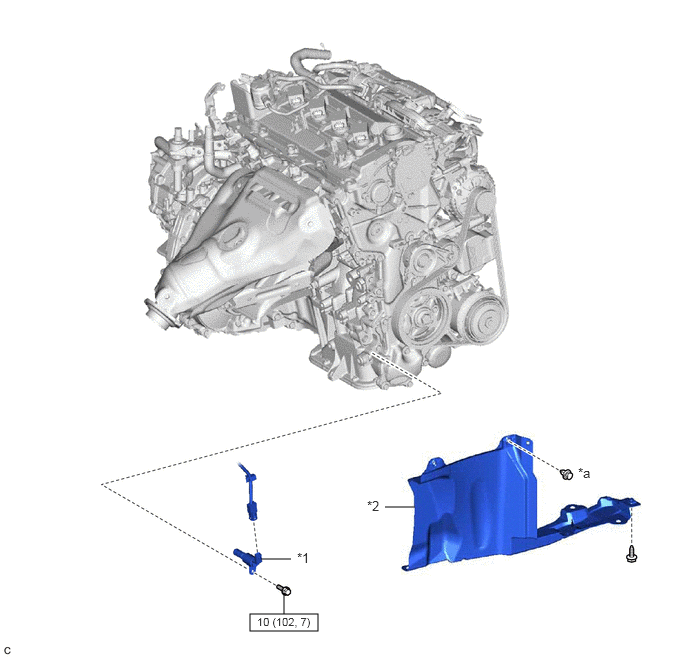

Fig 1: Oil Pressure Switching Valve Replacement Components With Torque Specifications [01/2019 - ]

Callout	Description	Callout	Description
*1	OIL PRESSURE CONTROL VALVE ASSEMBLY	*2	REAR ENGINE UNDER COVER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
*a	Type A: x 7 Type B: x 8	-	-
