Components [01/2019 - ]
WARNING: This page is about a different variant/trim than selected.

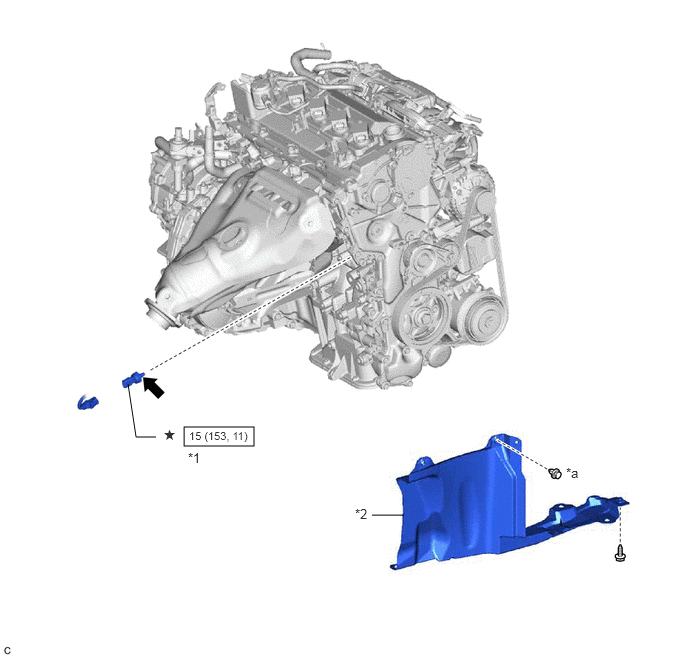

Fig 1: Oil Pressure And Temperature Sensor Replacement Components With Torque Specifications [01/2019 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | OIL PRESSURE AND TEMPERATURE SENSOR | *2 | REAR ENGINE UNDER COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | Adhesive 1344 | ||
| * | Precoated part | - | - |
| *a | Type A: x 7 Type B: x 8 |
- | - |
