Components [03/2019 - 09/2024]
WARNING: This page is about a different variant/trim than selected.

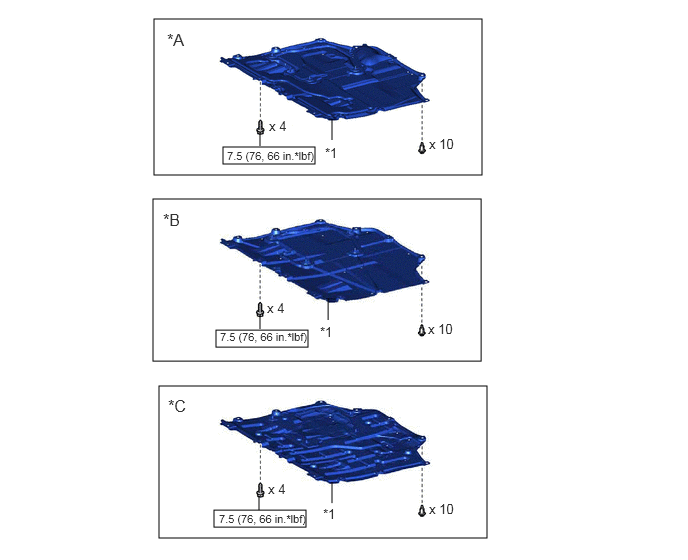

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications [03/2019 - 09/2024] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | Type C | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

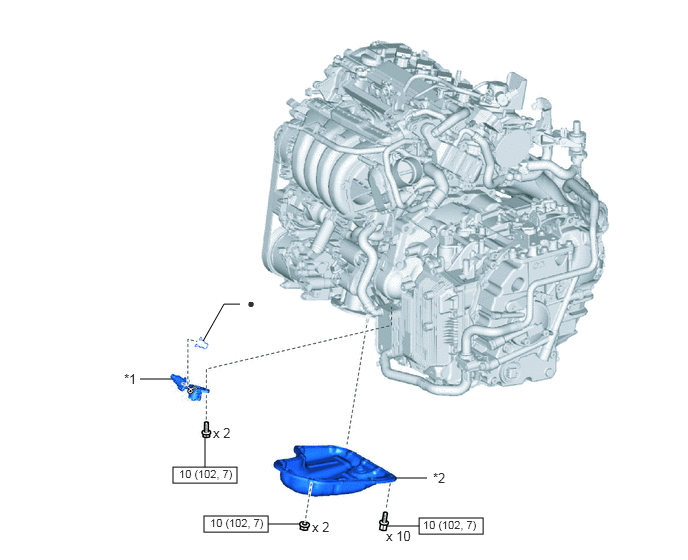

Fig 2: Oil Level Sensor Replacement Components With Torque Specifications [03/2019 - 09/2024] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE OIL LEVEL SENSOR | *2 | OIL PAN SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
