Components [11/2022 - ]
WARNING: This page is about a different variant/trim than selected.

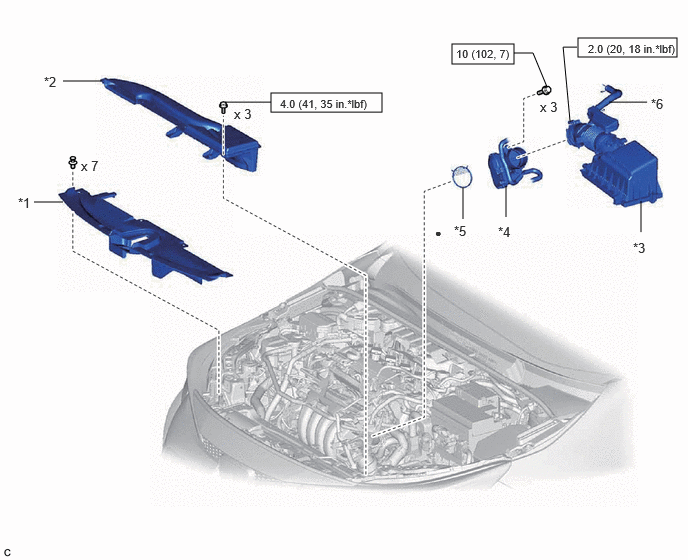

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | RADIATOR SUPPORT OPENING COVER | *2 | INLET NO. 1 AIR CLEANER |
| *3 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *4 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *5 | THROTTLE BODY GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

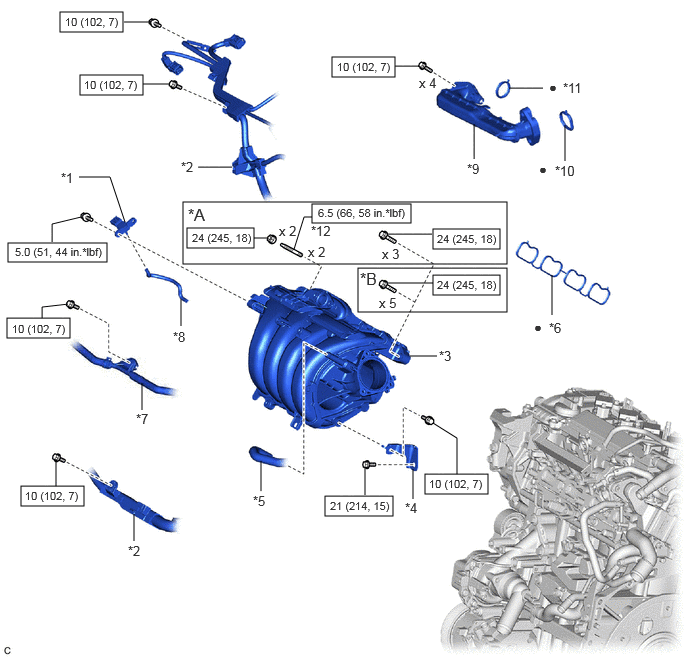

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) | *2 | ENGINE WIRE |
| *3 | INTAKE MANIFOLD | *4 | INTAKE MANIFOLD STAY |
| *5 | NO. 1 FUEL VAPOR FEED HOSE | *6 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *7 | NO. 3 WATER BY-PASS PIPE | *8 | VACUUM HOSE |
| *9 | NO. 1 EGR PIPE SUB-ASSEMBLY | *10 | EGR VALVE ADAPTER GASKET |
| *11 | EGR INLET GASKET | *12 | STUD BOLT |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
