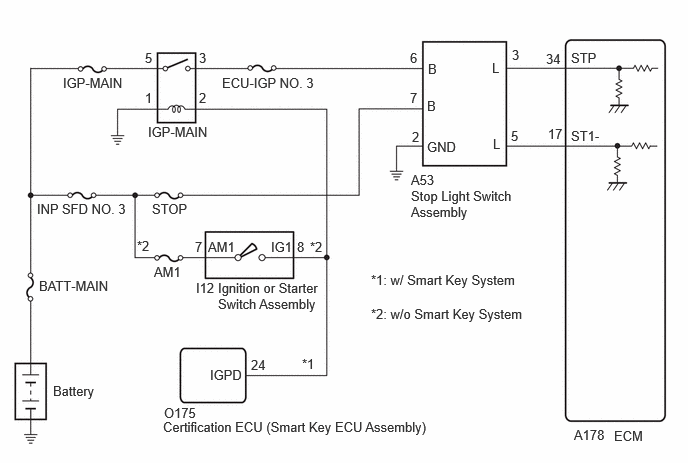

DTC P0504-2B: Brake Switch "A"/"B" Signal Cross Coupled [09/2024 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1252613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
