Section 81 (Engine Control System (M20A-FKS) - Diagnostic Codes (P0450-P0505))
>>
SFI System
>>
DTC P0504-2B: Brake Switch "A"/"B" Signal Cross Coupled [09/2022 - 11/2022]
>>
Wiring Diagram
DTC P0504-2B: Brake Switch "A"/"B" Signal Cross Coupled [09/2022 - 11/2022]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

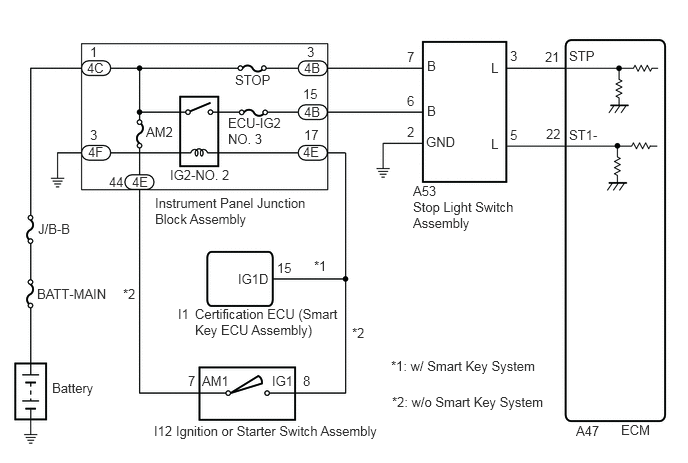

for TMMMS Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

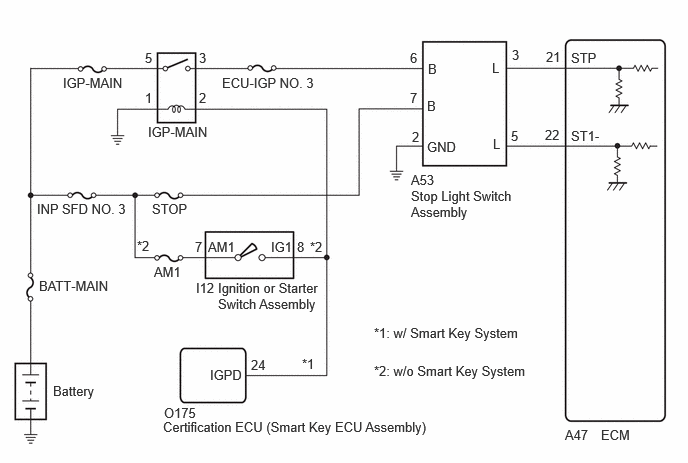

for TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
