DTC P0504-2B: Brake Switch "A"/"B" Signal Cross Coupled [03/2023 - 09/2024]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

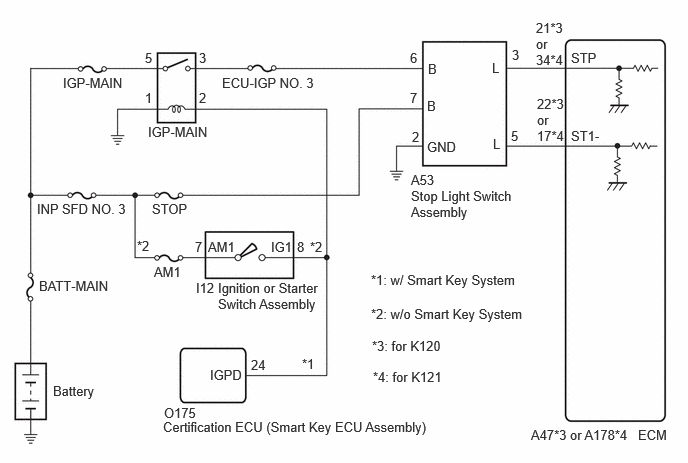

GTY1180575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
