Components [09/2019 - 06/2021]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Camshaft Timing Control Motor Replacement Components With Torque Specifications [09/2019 - 06/2021] (1 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | *2 | OUTER COWL TOP PANEL SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 2: Camshaft Timing Control Motor Replacement Components With Torque Specifications [09/2019 - 06/2021] (2 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | Type C | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE UNDER COVER RH | - | - |
| *a | Type A: x 4 Type B: x 5 |
- | - |
Fig 4: Camshaft Timing Control Motor Replacement Components With Torque Specifications [09/2019 - 06/2021] (4 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY CLAMP SUB-ASSEMBLY | *2 | FUEL DELIVERY GUARD |
| *3 | INLET HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

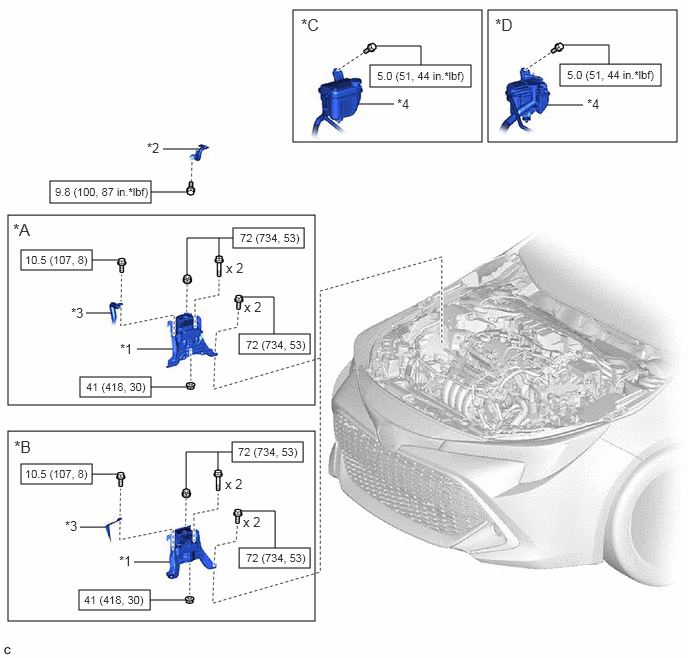

Fig 5: Camshaft Timing Control Motor Replacement Components With Torque Specifications [09/2019 - 06/2021] (5 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | for Fully Sealed Type | *D | for Non-Fully Sealed Type |
| *1 | ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH | *2 | NO. 1 COOLER REFRIGERANT HOSE BRACKET |
| *3 | NO. 2 EARTH WIRE | *4 | RESERVE SEALED TANK |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 6: Camshaft Timing Control Motor Replacement Components With Torque Specifications [09/2019 - 06/2021] (6 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CAM TIMING CONTROL MOTOR O-RING | *2 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
