Components [06/2018 - ]

WARNING: This page is about a different variant/trim than selected.

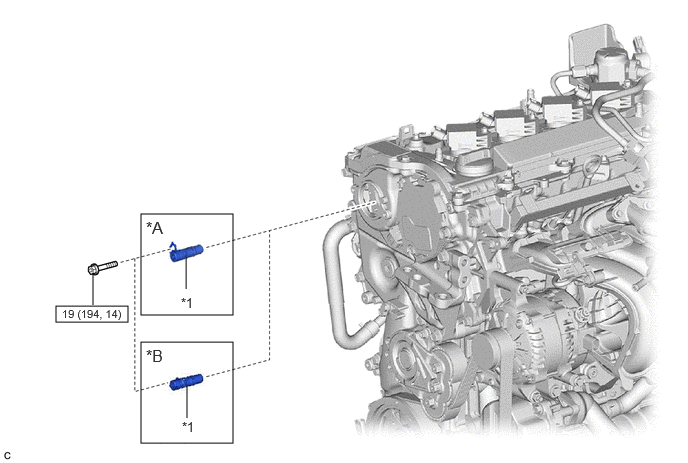

Fig 1: Camshaft Oil Control Valve Replacement Components With Torque Specifications

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*1	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
