Removal [06/2018 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
- Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.

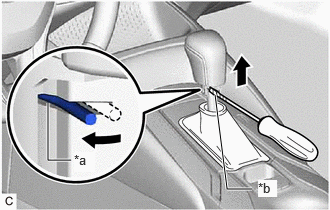

- Using a screwdriver with its tip wrapped with protective tape, expand the LH side clip and pull out the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.
*a Clip *b Protective Tape NOTE:Be careful not to damage the shift lever knob sub-assembly.
- Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.
