Components [03/2023 - ]
WARNING: This page is about a different variant/trim than selected.

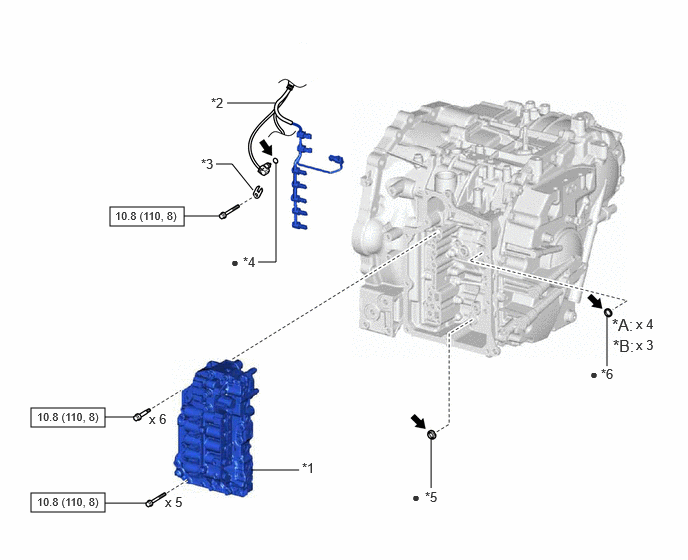

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | TRANSMISSION VALVE BODY ASSEMBLY | *2 | TRANSMISSION WIRE |
| *3 | TEMPERATURE SENSOR CLAMP | *4 | O-RING |
| *5 | FRONT OIL PUMP COVER GASKET | *6 | TRANSAXLE CASE GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine CVT Fluid FE | - | - |
