Removal [11/2022 - 09/2024]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY

    Refer to REMOVAL [11/2022 - 03/2023] , or refer to REMOVAL [03/2023 - 09/2024]

  2. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
    1. Disengage the clamp to disconnect the transmission wire from the solenoid lock plate.
      GTY809848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the 6 solenoid valve connectors.
    3. Remove the bolt and temperature sensor clamp from the transmission valve body assembly.
      GTY809846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the temperature sensor from the transmission valve body assembly.
    5. Remove the O-ring from the temperature sensor.
      GTY787480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 11 bolts and transmission valve body assembly from the transaxle case sub-assembly.
      GTY809847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Make sure the manual valve does not fall out when removing the transmission valve body assembly, as the manual valve is not secured to the transmission valve body assembly.

    7. Remove the front oil pump cover gasket from the transaxle case sub-assembly.
      GTY809852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Type A:
      1. Remove the 4 transaxle case gaskets from the transaxle case sub-assembly.
        GTY809857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

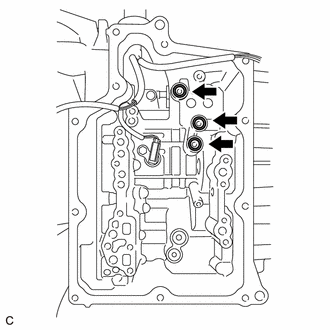

    9. Type B:
      1. Remove the 3 transaxle case gaskets from the transaxle case sub-assembly.
        GTY1251324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
