Removal [01/2019 - 03/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  3. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 9

  4. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 10

  5. REMOVE TCM

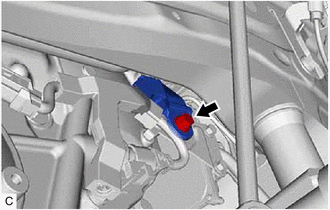

    1. Remove the bolt to disconnect the engine wire from the No. 2 transmission control ECU bracket.
      GTY784374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

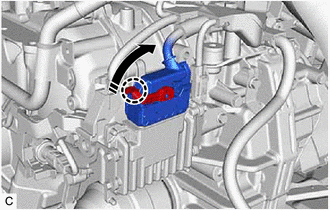

    2. Disengage the claw, rotate the lever and disconnect the TCM connector.
      GTY860071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

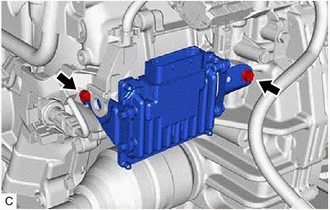

    3. Remove the 2 bolts and TCM from the continuously variable transaxle assembly.
      GTY846798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 1 TRANSMISSION CONTROL ECU BRACKET
    1. Remove the 2 screws and No. 1 transmission control ECU bracket from the TCM.
      GTY834439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 TRANSMISSION CONTROL ECU BRACKET
    1. Remove the 2 screws and No. 2 transmission control ECU bracket from the TCM.
      GTY807843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
