Section 76 (Automatic Transaxle System (K120) - Diagnostic Codes (5 Of 5) & Circuit Tests)
>>
K120 Continuously Variable Transaxle System
>>
DTC U0100-87: Lost Communication with ECM/PCM "A" Missing Message [09/2022 - 11/2022]
>>

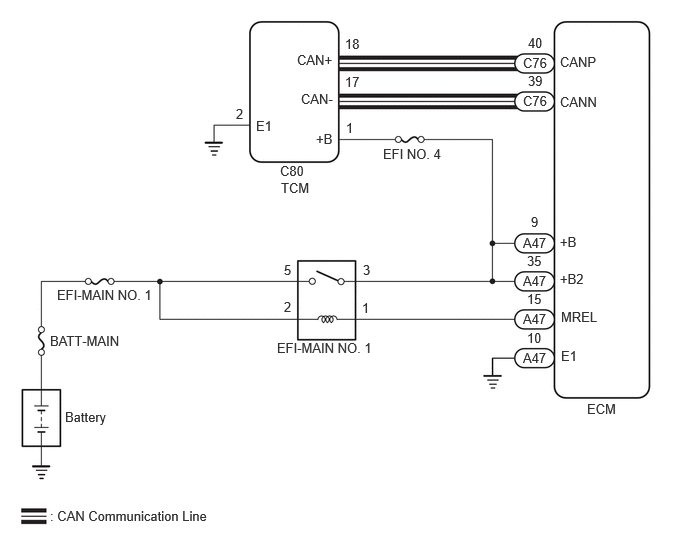

Wiring Diagram
DTC U0100-87: Lost Communication with ECM/PCM "A" Missing Message [09/2022 - 11/2022]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
for TMMMS Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
