DTC P2828-12: Pressure Control Solenoid "K" Circuit Short to Battery [06/2018 - 09/2024]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

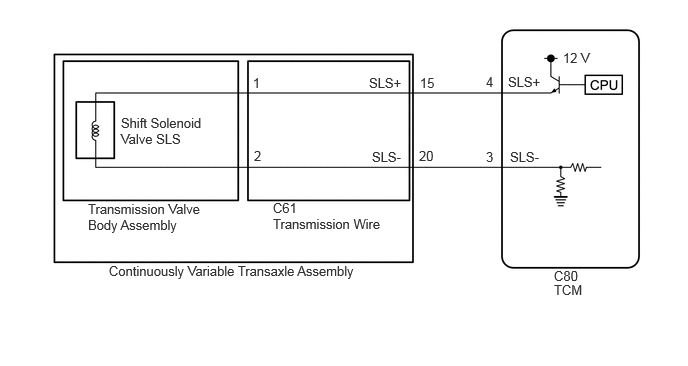

GTY859224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
