Components [01/2019 - 04/2020]
WARNING: This page is about a different variant/trim than selected.

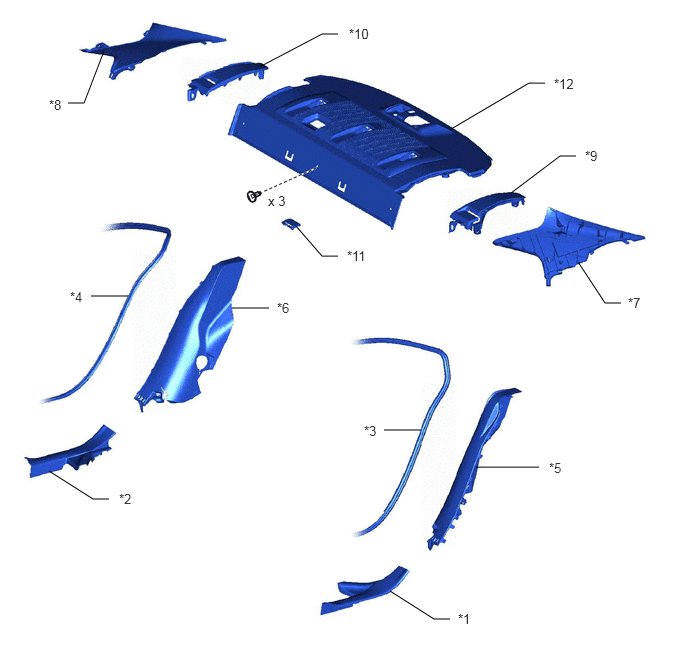

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR DOOR SCUFF PLATE LH | *2 | REAR DOOR SCUFF PLATE RH |
| *3 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *4 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
| *5 | REAR SEAT SIDE GARNISH LH | *6 | REAR SEAT SIDE GARNISH RH |
| *7 | ROOF SIDE INNER GARNISH LH | *8 | ROOF SIDE INNER GARNISH RH |
| *9 | PACKAGE TRAY TRIM BRACKET LH | *10 | PACKAGE TRAY TRIM BRACKET RH |
| *11 | REAR SEAT SHOULDER BELT HOLE COVER | *12 | PACKAGE TRAY TRIM PANEL ASSEMBLY |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY LH | *2 | REAR FLOOR FINISH PLATE |
| *3 | SPARE WHEEL COVER | - | - |
Fig 3: Fuel Pump ECU (For Sedan) Replacement Components With Torque Specifications [01/2019 - 04/2020] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Type A | *B | for Type B |
| *1 | FUEL PUMP CONTROL ECU | *2 | FUEL PUMP CONTROL ECU BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
