Components [06/2018 - 06/2020]
WARNING: This page is about a different variant/trim than selected.
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Spare Tire | - | - |
| *1 | PACKAGE TRAY TRIM PANEL ASSEMBLY | *2 | REAR DECK TRIM COVER |
| *3 | REAR FLOOR MAT ASSEMBLY | *4 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Spare Tire | - | - |
| *1 | DECK BOARD ASSEMBLY | *2 | DECK FLOOR BOX LH |
| *3 | DECK FLOOR BOX RH | *4 | FRONT DECK FLOOR BOX |
| *5 | REAR DECK TRIM COVER | *6 | REAR NO. 1 FLOOR BOARD |
| *7 | LUGGAGE HOLD BELT STRIKER ASSEMBLY | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *2 | REAR DOOR SCUFF PLATE LH |

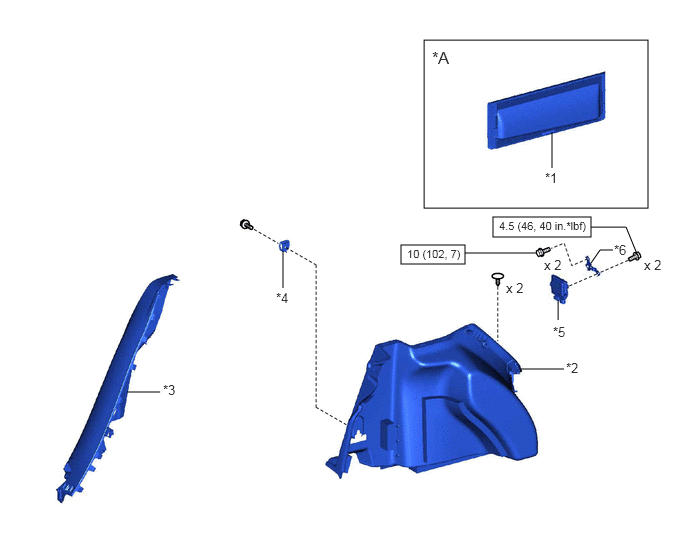

Fig 4: Fuel Pump ECU (For Hatchback) Replacement Components With Torque Specifications [06/2018 - 06/2020] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Spare Tire | - | - |
| *1 | DECK TRIM SIDE LOWER BOARD LH | *2 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 | REAR SEAT SIDE GARNISH LH | *4 | LUGGAGE HOLD BELT STRIKER ASSEMBLY |
| *5 | FUEL PUMP CONTROL ECU | *6 | FUEL PUMP CONTROL ECU BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
