On-Vehicle Inspection [06/2018 - 09/2022]: Procedure

WARNING:

• When working near the engine room while the engine has started or the power source mode is engine switch on (IG), do not touch the fan and generator V belt or rotating components such as the fan, etc.
• Touching the fan and generator V belt or rotating components such as the fan, etc. could result in your hand or clothing getting caught and pulled in.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

Refer to INITIALIZATION [06/2018 - 09/2019] , or refer to INITIALIZATION [09/2019 - 04/2020] , or refer to INITIALIZATION [04/2020 - 11/2022]

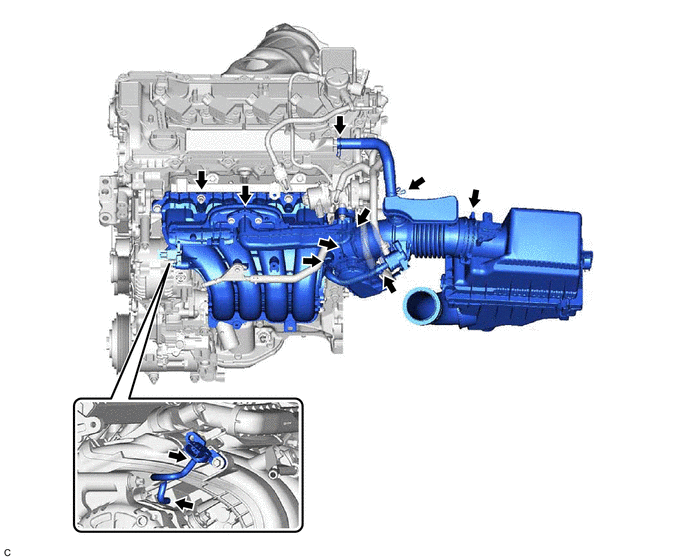

1. Check that there are no vacuum leaks at the points shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

   Refer to INITIALIZATION [06/2018 - 09/2019] , or refer to INITIALIZATION [09/2019 - 04/2020] , or refer to INITIALIZATION [04/2020 - 11/2022]
