Removal [06/2018 - 11/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 9 [06/2018 - 01/2019] , or refer to PROCEDURE - Step 9 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 9 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 9 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 9 [06/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - 11/2022]
REMOVE INTAKE MANIFOLD
Refer to REMOVAL [06/2018 - 01/2019] , or refer to REMOVAL [01/2019 - 09/2022] , or refer to REMOVAL [09/2022 - 11/2022]
DISCONNECT NO. 2 RADIATOR HOSE
Refer to PROCEDURE - Step 22 [06/2018 - 01/2019] , or refer to PROCEDURE - Step 22 [01/2019 - 03/2019] , or refer to PROCEDURE - Step 22 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 23 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 23 [06/2021 - 09/2022] , or refer to PROCEDURE - Step 23 [09/2022 - 11/2022]

REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

Disconnect the water inlet with thermostat sub-assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.
Do not damage the water inlet with thermostat sub-assembly.

HINT:

When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

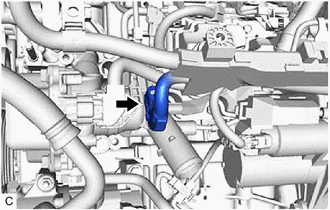

Disconnect the sensor wire connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

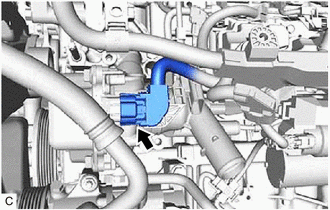

Disconnect the engine water pump assembly (water inlet housing) connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

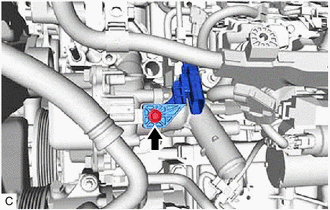

Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

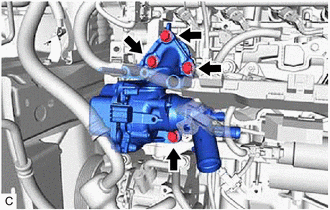

Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.

Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.

Remove the gasket from the water inlet with thermostat sub-assembly.

Remove the gasket from the engine water pump assembly (water inlet housing).
