Components [03/2019 - 11/2022]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Water Pump (W/O Cooling Fan ECU) Replacement Components With Torque Specifications [03/2019 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | Type C | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

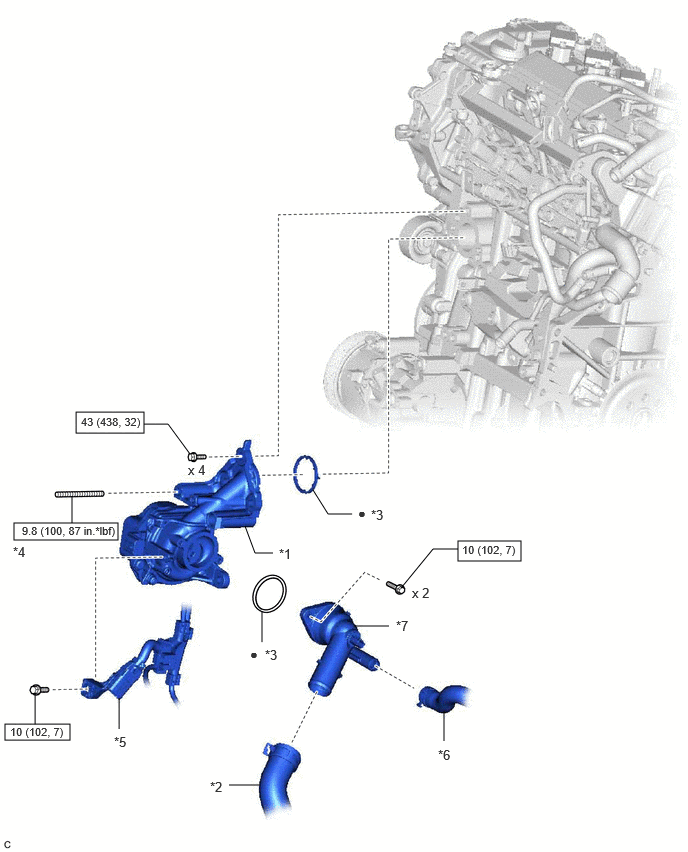

Fig 2: Water Pump (W/O Cooling Fan ECU) Replacement Components With Torque Specifications [03/2019 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) | *2 | NO. 2 RADIATOR HOSE |
| *3 | GASKET | *4 | STUD BOLT |
| *5 | SENSOR WIRE | *6 | NO. 7 WATER BY-PASS HOSE |
| *7 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
