Removal [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 9 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - 03/2023] , or refer to PROCEDURE - Step 9 [03/2023 - 09/2024] , or refer to PROCEDURE - Step 9 [09/2024 - ]
DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 2
REMOVE INTAKE MANIFOLD
Refer to REMOVAL [09/2022 - 11/2022] , or refer to REMOVAL [11/2022 - ]
DISCONNECT NO. 2 RADIATOR HOSE
Refer to PROCEDURE - Step 23 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 21 [11/2022 - 03/2023] , or refer to PROCEDURE - Step 21 [03/2023 - 09/2024] , or refer to PROCEDURE - Step 21 [09/2024 - ]

REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

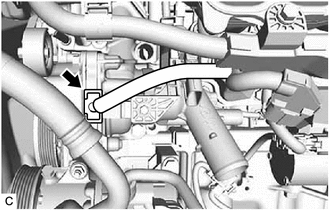

Slide the clip and disconnect the No. 7 water by-pass hose from the water inlet with thermostat sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not apply force to the water inlet with thermostat sub-assembly when disconnecting the No. 7 water by-pass hose.
Do not damage the water inlet with thermostat sub-assembly.

HINT:

When disconnecting the No. 7 water by-pass hose, slide the clip, rotate the hose and pull it straight off the pipe.

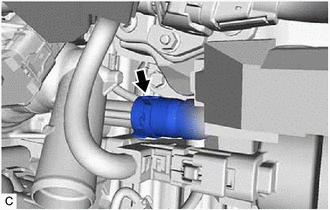

Disconnect the sensor wire connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

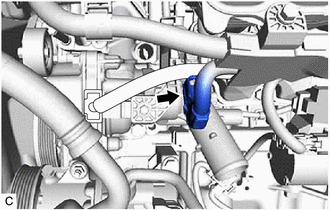

Disconnect the engine water pump assembly (water inlet housing) connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

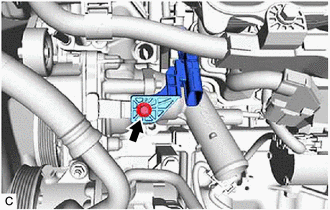

Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

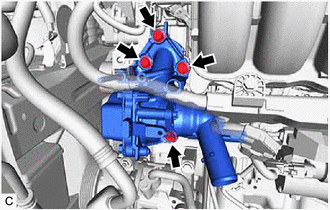

Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using an 8 mm socket wrench, remove the 2 bolts and water inlet with thermostat sub-assembly.

Remove the gasket from the water inlet with thermostat sub-assembly.

Remove the gasket from the engine water pump assembly (water inlet housing).
