Components [09/2022 - ]

WARNING: This page is about a different variant/trim than selected.

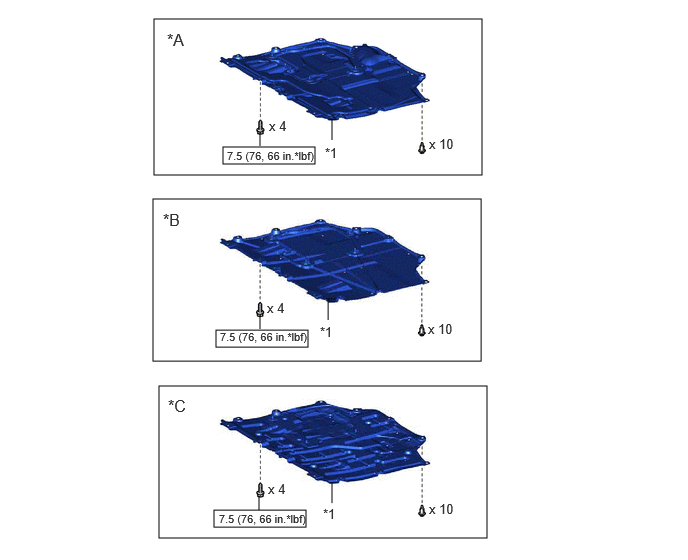

Fig 1: Water Pump (W/ Cooling Fan ECU) Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*C	Type C	-	-
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

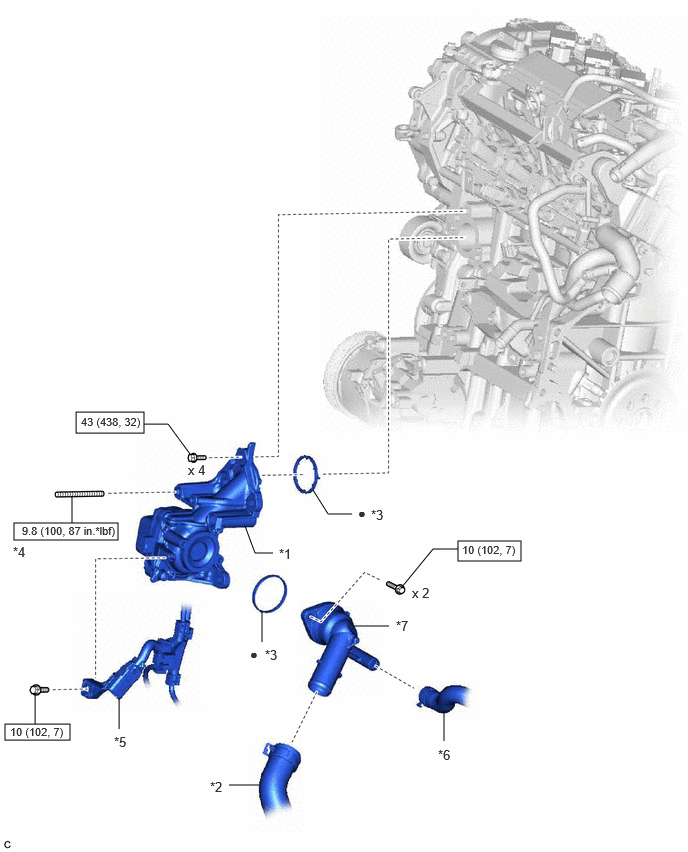

Fig 2: Water Pump (W/ Cooling Fan ECU) Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)	*2	NO. 2 RADIATOR HOSE
*3	GASKET	*4	STUD BOLT
*5	SENSOR WIRE	*6	NO. 7 WATER BY-PASS HOSE
*7	WATER INLET WITH THERMOSTAT SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
