Components [09/2022 - ]
WARNING: This page is about a different variant/trim than selected.

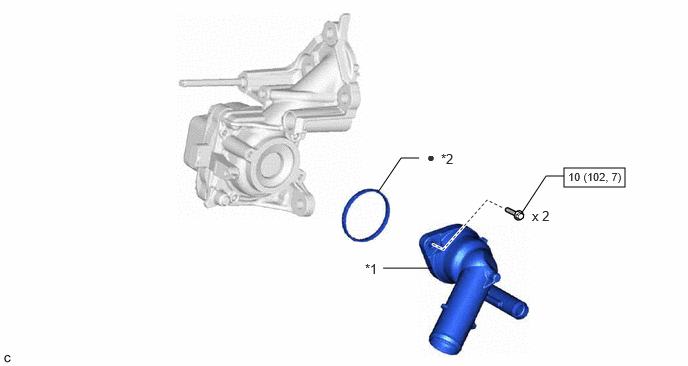

Fig 1: Thermostat (W/ Cooling Fan ECU) Replacement Components With Torque Specifications [09/2022 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY | *2 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
